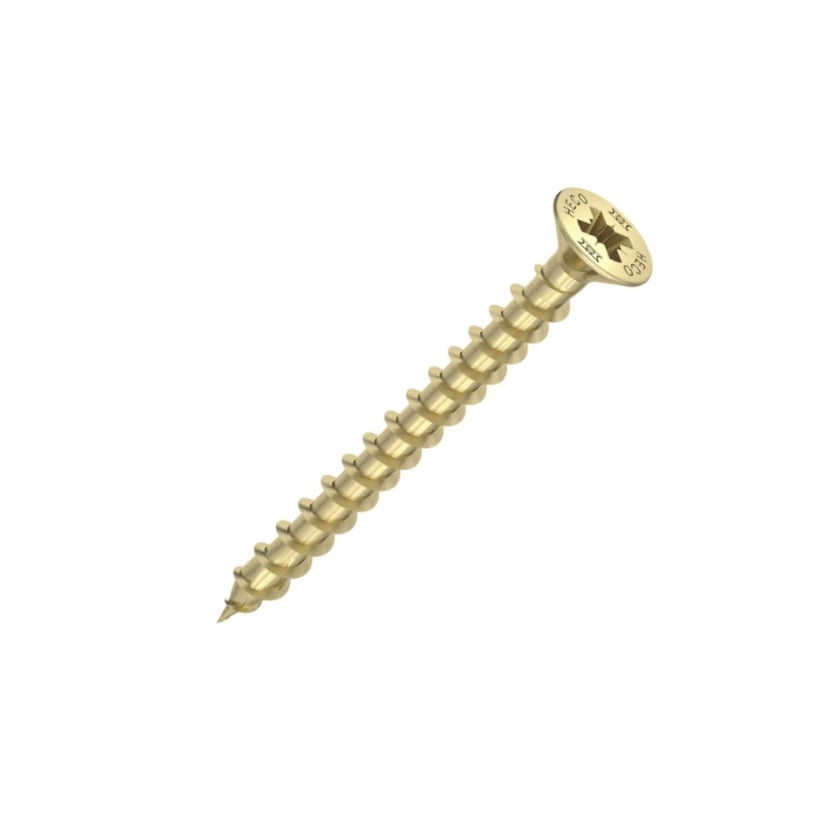

HECO-TOPIX-plus TFX, Gulförzinkad
Beskrivning
HECO-TOPIX®-plus är avsedd för montage i trämaterial.
Träskruv, försänkt huvud. Tillverkad av härdat stål, gulförzinkad.
Spårtyp: Pozidriv
Spräcker inte virket pga den unika spetsdesignen med fräsrillor som fungerar förborrande.
• MagicClose: Variabel gängstigning för sammandragande effekt.
• PerfectPitch: Optimerad gängstigning för varje skruvlängd.
• Korrosivitetsklass C2
Ladda ner
Specifikationer
| Artikelnummer | Dimension | Diameter, mm | Längd, mm | Gänglängd (L1) | Gängtyp | Bitsspår | Huvuddiameter | Innehåller | Frp. typ | Ean | Enh./ytteremb. | Ytteremb. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 121102516511 | 2,5 x 16 | 2,5 | 16 | 13,00 | HG | PZ2 | 4,90 | 1000 | Well | 4019787600170 | 10 | KRT | |
| 121102520511 | 2,5 x 20 | 2,5 | 20 | 17,00 | HG | PZ2 | 4,90 | 1000 | Well | 4019787600255 | 10 | KRT | |
| 121102525511 | 2,5 x 25 | 2,5 | 25 | 22,00 | HG | PZ2 | 4,90 | 1000 | Well | 4019787600293 | 10 | KRT | |
| 121103016511 | 3,0 x 16 | 3,0 | 16 | 12,00 | HG | PZ2 | 5,90 | 1000 | Well | 4019787600606 | 10 | KRT | |
| 121103020511 | 3,0 x 20 | 3,0 | 20 | 16,00 | HG | PZ2 | 5,90 | 1000 | Well | 4019787600804 | 10 | KRT | |
| 121103025511 | 3,0 x 25 | 3,0 | 25 | 21,00 | HG | PZ2 | 5,90 | 1000 | Well | 4019787600989 | 10 | KRT | |
| 121103030511 | 3,0 x 30 | 3,0 | 30 | 26,00 | HG | PZ2 | 5,90 | 1000 | Well | 4019787601153 | 10 | KRT | |
| 121103035511 | 3,0 x 35 | 3,0 | 35 | 31,00 | HG | PZ2 | 5,90 | 1000 | Well | 4019787601375 | 10 | KRT | |
| 121103040511 | 3,0 x 40 | 3,0 | 40 | 36,00 | HG | PZ2 | 5,90 | 500 | Well | 4019787601504 | 10 | KRT | |
| 121103516511 | 3,5 x 16 | 3,5 | 16 | 11,00 | HG | PZ2 | 7,30 | 1000 | Well | 4019787601931 | 10 | KRT | |
| 121103520511 | 3,5 x 20 | 3,5 | 20 | 15,00 | HG | PZ2 | 7,30 | 1000 | Well | 4019787602129 | 10 | KRT | |
| 121103526511 | 3,5 x 25 | 3,5 | 25 | 15,00 | DG | PZ2 | 7,30 | 1000 | Well | 4019787602358 | 10 | KRT | |
| 121103525511 | 3,5 x 25 | 3,5 | 25 | 20,00 | HG | PZ2 | 7,30 | 1000 | Well | 4019787602297 | 10 | KRT | |
| 121103531511 | 3,5 x 30 | 3,5 | 30 | 18,00 | DG | PZ2 | 7,30 | 1000 | Well | 4019787602600 | 10 | KRT | |
| 121103530511 | 3,5 x 30 | 3,5 | 30 | 25,00 | HG | PZ2 | 7,30 | 1000 | Well | 4019787602549 | 10 | KRT | |
| 121103536511 | 3,5 x 35 | 3,5 | 35 | 21,00 | DG | PZ2 | 7,30 | 1000 | Well | 4019787602839 | 10 | KRT | |
| 121103535511 | 3,5 x 35 | 3,5 | 35 | 30,00 | HG | PZ2 | 7,30 | 1000 | Well | 4019787602778 | 10 | KRT | |
| 121103540511 | 3,5 x 40 | 3,5 | 40 | 35,00 | HG | PZ2 | 7,30 | 500 | Well | 4019787603010 | 10 | KRT | |
| 121103541511 | 3,5 x 40 | 3,5 | 40 | 24,00 | DG | PZ2 | 7,30 | 500 | Well | 4019787603072 | 10 | KRT | |
| 121103545511 | 3,5 x 45 | 3,5 | 45 | 40,00 | HG | PZ2 | 7,30 | 500 | Well | 4019787603195 | 10 | KRT | |
| 121103546511 | 3,5 x 45 | 3,5 | 45 | 27,00 | DG | PZ2 | 7,30 | 500 | Well | 4019787603256 | 10 | KRT | |
| 121103550511 | 3,5 x 50 | 3,5 | 50 | 45,00 | HG | PZ2 | 7,30 | 500 | Well | 4019787603355 | 10 | KRT | |
| 121103551511 | 3,5 x 50 | 3,5 | 50 | 30,00 | DG | PZ2 | 7,30 | 500 | Well | 4019787603416 | 10 | KRT | |
| 121104016511 | 4,0 x 16 | 4,0 | 16 | 11,00 | HG | PZ2 | 7,90 | 1000 | Well | 4019787603713 | 10 | KRT | |
| 121104020511 | 4,0 x 20 | 4,0 | 20 | 15,00 | HG | PZ2 | 7,90 | 1000 | Well | 4019787603881 | 10 | KRT | |
| 121104025511 | 4,0 x 25 | 4,0 | 25 | 20,00 | HG | PZ2 | 7,90 | 1000 | Well | 4019787604048 | 10 | KRT | |
| 121104031511 | 4,0 x 30 | 4,0 | 30 | 18,00 | DG | PZ2 | 7,90 | 1000 | Well | 4019787604338 | 10 | KRT | |
| 121104030511 | 4,0 x 30 | 4,0 | 30 | 25,00 | HG | PZ2 | 7,90 | 1000 | Well | 4019787604277 | 10 | KRT | |
| 121104036511 | 4,0 x 35 | 4,0 | 35 | 21,00 | DG | PZ2 | 7,90 | 500 | Well | 4019787604574 | 10 | KRT | |
| 121104035511 | 4,0 x 35 | 4,0 | 35 | 30,00 | HG | PZ2 | 7,90 | 500 | Well | 4019787604512 | 10 | KRT | |
| 121104041511 | 4,0 x 40 | 4,0 | 40 | 24,00 | DG | PZ2 | 7,90 | 500 | Well | 4019787604833 | 10 | KRT | |
| 121104040511 | 4,0 x 40 | 4,0 | 40 | 35,00 | HG | PZ2 | 7,90 | 500 | Well | 4019787604741 | 10 | KRT | |
| 121104045511 | 4,0 x 45 | 4,0 | 45 | 40,00 | HG | PZ2 | 7,90 | 500 | Well | 4019787605007 | 10 | KRT | |
| 121104046511 | 4,0 x 45 | 4,0 | 45 | 27,00 | DG | PZ2 | 7,90 | 500 | Well | 4019787605076 | 10 | KRT | |
| 121104051511 | 4,0 x 50 | 4,0 | 50 | 30,00 | DG | PZ2 | 7,90 | 500 | Well | 4019787605328 | 10 | KRT | |
| 121104050511 | 4,0 x 50 | 4,0 | 50 | 45,00 | HG | PZ2 | 7,90 | 500 | Well | 4019787605243 | 10 | KRT | |
| 121104061511 | 4,0 x 60 | 4,0 | 60 | 36,00 | DG | PZ2 | 7,90 | 200 | Well | 4019787605595 | 10 | KRT | |
| 121104060511 | 4,0 x 60 | 4,0 | 60 | 55,00 | HG | PZ2 | 7,90 | 200 | Well | 4019787605557 | 10 | KRT | |
| 121104070511 | 4,0 x 70 | 4,0 | 70 | 65,00 | HG | PZ2 | 7,90 | 200 | Well | 4019787605694 | 10 | KRT | |
| 121104071511 | 4,0 x 70 | 4,0 | 70 | 42,00 | DG | PZ2 | 7,90 | 200 | Well | 4019787605731 | 10 | KRT | |
| 121104516511 | 4,5 x 16 | 4,5 | 16 | 11,00 | HG | PZ2 | 8,90 | 1000 | Well | 4019787605847 | 10 | KRT | |
| 121104520511 | 4,5 x 20 | 4,5 | 20 | 15,00 | HG | PZ2 | 8,90 | 1000 | Well | 4019787605977 | 10 | KRT | |
| 121104525511 | 4,5 x 25 | 4,5 | 25 | 20,00 | HG | PZ2 | 8,90 | 500 | Well | 4019787606158 | 10 | KRT | |
| 121104530511 | 4,5 x 30 | 4,5 | 30 | 25,00 | HG | PZ2 | 8,90 | 500 | Well | 4019787606325 | 10 | KRT | |
| 121104531511 | 4,5 x 30 | 4,5 | 30 | 18,00 | DG | PZ2 | 8,90 | 500 | Well | 4019787606394 | 10 | KRT | |
| 121104536511 | 4,5 x 35 | 4,5 | 35 | 21,00 | DG | PZ2 | 8,90 | 500 | Well | 4019787606608 | 10 | KRT | |
| 121104535511 | 4,5 x 35 | 4,5 | 35 | 30,00 | HG | PZ2 | 8,90 | 500 | Well | 4019787606547 | 10 | KRT | |
| 121104541511 | 4,5 x 40 | 4,5 | 40 | 24,00 | DG | PZ2 | 8,90 | 500 | Well | 4019787606837 | 10 | KRT | |
| 121104540511 | 4,5 x 40 | 4,5 | 40 | 35,00 | HG | PZ2 | 8,90 | 500 | Well | 4019787606776 | 10 | KRT | |
| 121104546511 | 4,5 x 45 | 4,5 | 45 | 27,00 | DG | PZ2 | 8,90 | 500 | Well | 4019787607070 | 10 | KRT | |
| 121104545511 | 4,5 x 45 | 4,5 | 45 | 40,00 | HG | PZ2 | 8,90 | 500 | Well | 4019787607018 | 10 | KRT | |
| 121104550511 | 4,5 x 50 | 4,5 | 50 | 45,00 | HG | PZ2 | 8,90 | 200 | Well | 4019787607247 | 10 | KRT | |
| 121104551511 | 4,5 x 50 | 4,5 | 50 | 30,00 | DG | PZ2 | 8,90 | 200 | Well | 4019787607308 | 10 | KRT | |
| 121104561511 | 4,5 x 60 | 4,5 | 60 | 36,00 | DG | PZ2 | 8,90 | 200 | Well | 4019787607582 | 10 | KRT | |
| 121104560511 | 4,5 x 60 | 4,5 | 60 | 55,00 | HG | PZ2 | 8,90 | 200 | Well | 4019787607544 | 10 | KRT | |
| 121104570511 | 4,5 x 70 | 4,5 | 70 | 65,00 | HG | PZ2 | 8,90 | 200 | Well | 4019787607711 | 10 | KRT | |
| 121104571511 | 4,5 x 70 | 4,5 | 70 | 42,00 | DG | PZ2 | 8,90 | 200 | Well | 4019787607759 | 10 | KRT | |
| 121104580511 | 4,5 x 80 | 4,5 | 80 | 48,00 | DG | PZ2 | 8,90 | 200 | Well | 4019787607858 | 10 | KRT | |
| 121105020511 | 5,0 x 20 | 5,0 | 20 | 14,00 | HG | PZ2 | 9,60 | 500 | Well | 4019787608053 | 10 | KRT | |
| 121105025511 | 5,0 x 25 | 5,0 | 25 | 19,00 | HG | PZ2 | 9,60 | 500 | Well | 4019787608176 | 10 | KRT | |
| 121105030511 | 5,0 x 30 | 5,0 | 30 | 24,00 | HG | PZ2 | 9,60 | 500 | Well | 4019787608312 | 10 | KRT | |
| 121105036511 | 5,0 x 35 | 5,0 | 35 | 21,00 | DG | PZ2 | 9,60 | 500 | Well | 4019787608565 | 10 | KRT | |
| 121105035511 | 5,0 x 35 | 5,0 | 35 | 29,00 | HG | PZ2 | 9,60 | 500 | Well | 4019787608503 | 10 | KRT | |
| 121105041511 | 5,0 x 40 | 5,0 | 40 | 24,00 | DG | PZ2 | 9,60 | 500 | Well | 4019787608749 | 5 | KRT | |
| 121105040511 | 5,0 x 40 | 5,0 | 40 | 34,00 | HG | PZ2 | 9,60 | 500 | Well | 4019787608688 | 10 | KRT | |
| 121105046511 | 5,0 x 45 | 5,0 | 45 | 27,00 | DG | PZ2 | 9,60 | 200 | Well | 4019787608909 | 10 | KRT | |
| 121105045511 | 5,0 x 45 | 5,0 | 45 | 39,00 | HG | PZ2 | 9,60 | 200 | Well | 4019787608862 | 10 | KRT | |
| 121105050511 | 5,0 x 50 | 5,0 | 50 | 44,00 | HG | PZ2 | 9,60 | 200 | Well | 4019787608992 | 10 | KRT | |
| 121105051511 | 5,0 x 50 | 5,0 | 50 | 30,00 | DG | PZ2 | 9,60 | 200 | Well | 4019787609043 | 10 | KRT | |
| 121105061511 | 5,0 x 60 | 5,0 | 60 | 36,00 | DG | PZ2 | 9,60 | 200 | Well | 4019787609289 | 10 | KRT | |
| 121105060511 | 5,0 x 60 | 5,0 | 60 | 54,00 | HG | PZ2 | 9,60 | 200 | Well | 4019787609234 | 10 | KRT | |
| 121105070511 | 5,0 x 70 | 5,0 | 70 | 64,00 | HG | PZ2 | 9,60 | 200 | Well | 4019787609395 | 10 | KRT | |
| 121105071511 | 5,0 x 70 | 5,0 | 70 | 42,00 | DG | PZ2 | 9,60 | 200 | Well | 4019787609449 | 10 | KRT | |
| 121105080511 | 5,0 x 80 | 5,0 | 80 | 48,00 | DG | PZ2 | 9,60 | 200 | Well | 4019787609562 | 10 | KRT | |
| 121105090511 | 5,0 x 90 | 5,0 | 90 | 54,00 | DG | PZ2 | 9,60 | 200 | Well | 4019787609661 | 10 | KRT | |
| 121105100511 | 5,0 x 100 | 5,0 | 100 | 60,00 | DG | PZ2 | 9,60 | 100 | Well | 4019787609777 | 10 | KRT | |
| 121105120511 | 5,0 x 120 | 5,0 | 120 | 60,00 | DG | PZ2 | 9,60 | 100 | Well | 4019787609876 | 10 | KRT | |
| 121106030511 | 6,0 x 30 | 6,0 | 30 | 23,00 | HG | PZ3 | 11,70 | 200 | Well | 4019787609951 | 10 | KRT | |
| 121106035511 | 6,0 x 35 | 6,0 | 35 | 28,00 | HG | PZ3 | 11,70 | 200 | Well | 4019787610018 | 10 | KRT | |
| 121106040511 | 6,0 x 40 | 6,0 | 40 | 33,00 | HG | PZ3 | 11,70 | 200 | Well | 4019787610056 | 10 | KRT | |
| 121106046511 | 6,0 x 45 | 6,0 | 45 | 27,00 | DG | PZ3 | 11,70 | 200 | Well | 4019787610230 | 10 | KRT | |
| 121106045511 | 6,0 x 45 | 6,0 | 45 | 38,00 | HG | PZ3 | 11,70 | 200 | Well | 4019787610193 | 10 | KRT | |
| 121106050511 | 6,0 x 50 | 6,0 | 50 | 43,00 | HG | PZ3 | 11,70 | 200 | Well | 4019787610278 | 10 | KRT | |
| 121106051511 | 6,0 x 50 | 6,0 | 50 | 30,00 | DG | PZ3 | 11,70 | 200 | Well | 4019787610322 | 10 | KRT | |
| 121106060511 | 6,0 x 60 | 6,0 | 60 | 53,00 | HG | PZ3 | 11,70 | 200 | Well | 4019787610506 | 10 | KRT | |
| 121106061511 | 6,0 x 60 | 6,0 | 60 | 36,00 | DG | PZ3 | 11,70 | 200 | Well | 4019787610551 | 10 | KRT | |
| 121106070511 | 6,0 x 70 | 6,0 | 70 | 63,00 | HG | PZ3 | 11,70 | 200 | Well | 4019787610711 | 10 | KRT | |
| 121106071511 | 6,0 x 70 | 6,0 | 70 | 42,00 | DG | PZ3 | 11,70 | 200 | Well | 4019787610759 | 10 | KRT | |
| 121106080511 | 6,0 x 80 | 6,0 | 80 | 48,00 | DG | PZ3 | 11,70 | 100 | Well | 4019787610872 | 10 | KRT | |
| 121106090511 | 6,0 x 90 | 6,0 | 90 | 54,00 | DG | PZ3 | 11,70 | 100 | Well | 4019787611015 | 10 | KRT | |
| 121106100511 | 6,0 x 100 | 6,0 | 100 | 60,00 | DG | PZ3 | 11,70 | 100 | Well | 4019787611107 | 10 | KRT | |
| 121106120511 | 6,0 x 120 | 6,0 | 120 | 72,00 | DG | PZ3 | 11,70 | 100 | Well | 4019787611312 | 10 | KRT |
