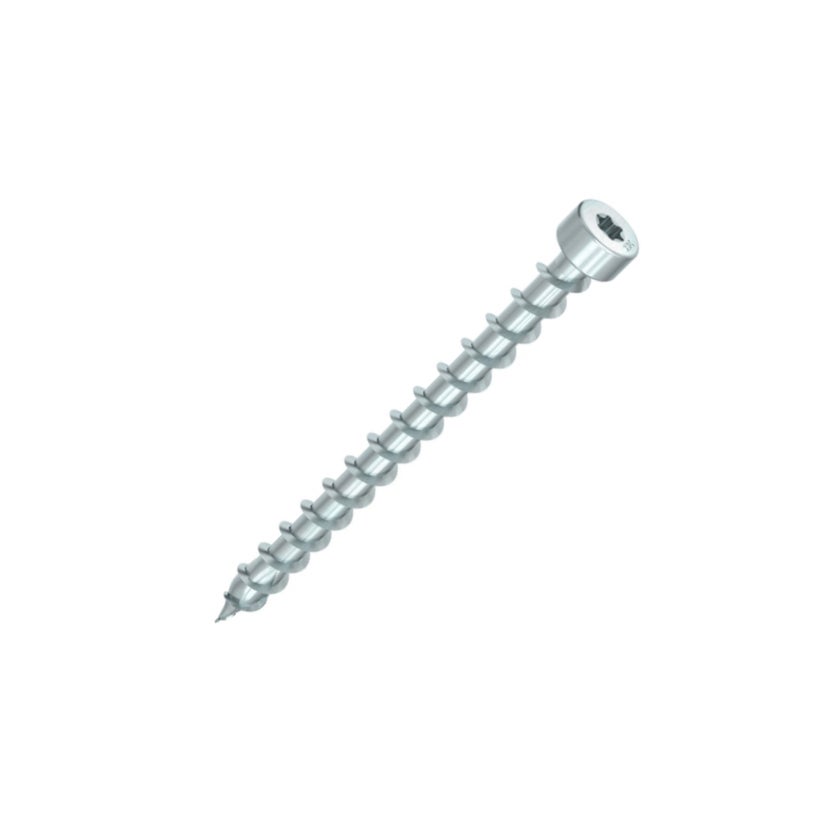

HECO-TOPIX-plus CYL, Förzinkad
Beskrivning
HECO-TOPIX®-plus är avsedd för montage i trämaterial.
Tillverkad av härdat stål, elförzinkad.
Spårtyp: Tx
Spräcker inte virket pga den unika spetsdesignen med fräsrillor som fungerar förborrande.
• PerfectPitch: Optimerad gängstigning för varje skruvlängd.
• Korrosivitetsklass C2
Ladda ner
Specifikationer
| Artikelnummer | Dimension | Diameter, mm | Längd, mm | Gänglängd (L1) | Gängtyp | Bitsspår | Huvuddiameter | Innehåller | Frp. typ | Ean | Enh./ytteremb. | Ytteremb. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 123306120571 | 6,0 x 120 | 6,0 | 120 | 114,00 | HG | T30 | 9,00 | 100 | Well | 4019787619530 | 10 | KRT | |
| 123306140571 | 6,0 x 140 | 6,0 | 140 | 134,00 | HG | T30 | 9,00 | 100 | Well | 4019787619523 | 5 | KRT | |
| 123306160571 | 6,0 x 160 | 6,0 | 160 | 154,00 | HG | T30 | 9,00 | 100 | Well | 4019787619516 | 8 | KRT | |
| 123306180571 | 6,0 x 180 | 6,0 | 180 | 174,00 | HG | T30 | 9,00 | 100 | Well | 4019787619509 | 4 | KRT | |
| 123306200571 | 6,0 x 200 | 6,0 | 200 | 194,00 | HG | T30 | 9,00 | 100 | Well | 4019787619493 | 4 | KRT | |
| 123308120571 | 8,0 x 120 | 8,0 | 120 | 112,00 | HG | T40 | 12,00 | 100 | Well | 4019787619288 | 4 | KRT | |
| 123308160571 | 8,0 x 160 | 8,0 | 160 | 152,00 | HG | T40 | 12,00 | 100 | Well | 4019787619295 | 4 | KRT | |
| 123308180571 | 8,0 x 180 | 8,0 | 180 | 172,00 | HG | T40 | 12,00 | 100 | Well | 4019787619301 | 2 | KRT | |
| 123308200571 | 8,0 x 200 | 8,0 | 200 | 192,00 | HG | T40 | 12,00 | 100 | Well | 4019787619318 | 2 | KRT | |
| 123308220571 | 8,0 x 220 | 8,0 | 220 | 212,00 | HG | T40 | 12,00 | 50 | Well | 4019787619325 | 4 | KRT | |
| 123308240571 | 8,0 x 240 | 8,0 | 240 | 232,00 | HG | T40 | 12,00 | 50 | Well | 4019787619332 | 4 | KRT | |
| 123308260571 | 8,0 x 260 | 8,0 | 260 | 252,00 | HG | T40 | 12,00 | 50 | Well | 4019787619349 | 4 | KRT | |
| 123308280571 | 8,0 x 280 | 8,0 | 280 | 272,00 | HG | T40 | 12,00 | 50 | Well | 4019787619356 | 4 | KRT | |
| 123308300571 | 8,0 x 300 | 8,0 | 300 | 292,00 | HG | T40 | 12,00 | 50 | Well | 4019787619363 | 4 | KRT | |
| 123308340571 | 8,0 x 340 | 8,0 | 340 | 332,00 | HG | T40 | 12,00 | 50 | Well | 4019787619370 | 4 | KRT | |
| 123308380571 | 8,0 x 380 | 8,0 | 380 | 372,00 | HG | T40 | 12,00 | 50 | Well | 4019787619387 | 2 | KRT | |
| 123310120571 | 10,0 x 120 | 10,0 | 120 | 110,00 | HG | T40 | 14,00 | 50 | Well | 4019787619394 | 4 | KRT | |
| 123310160571 | 10,0 x 160 | 10,0 | 160 | 150,00 | HG | T40 | 14,00 | 50 | Well | 4019787619400 | 4 | KRT | |
| 123310200571 | 10,0 x 200 | 10,0 | 200 | 190,00 | HG | T40 | 14,00 | 50 | Well | 4019787619417 | 4 | KRT | |
| 123310220571 | 10,0 x 220 | 10,0 | 220 | 210,00 | HG | T40 | 14,00 | 50 | Well | 4019787619424 | 4 | KRT | |
| 123310240571 | 10,0 x 240 | 10,0 | 240 | 230,00 | HG | T40 | 14,00 | 50 | Well | 4019787619431 | 2 | KRT | |
| 123310260571 | 10,0 x 260 | 10,0 | 260 | 250,00 | HG | T40 | 14,00 | 50 | Well | 4019787619448 | 2 | KRT | |
| 123310280571 | 10,0 x 280 | 10,0 | 280 | 270,00 | HG | T40 | 14,00 | 50 | Well | 4019787619455 | 2 | KRT | |
| 123310300571 | 10,0 x 300 | 10,0 | 300 | 290,00 | HG | T40 | 14,00 | 50 | Well | 4019787619462 | 2 | KRT | |
| 123310340571 | 10,0 x 340 | 10,0 | 340 | 330,00 | HG | T40 | 14,00 | 50 | Well | 4019787619479 | 2 | KRT | |
| 123310380571 | 10,0 x 380 | 10,0 | 380 | 370,00 | HG | T40 | 14,00 | 50 | Well | 4019787619486 | 2 | KRT |
