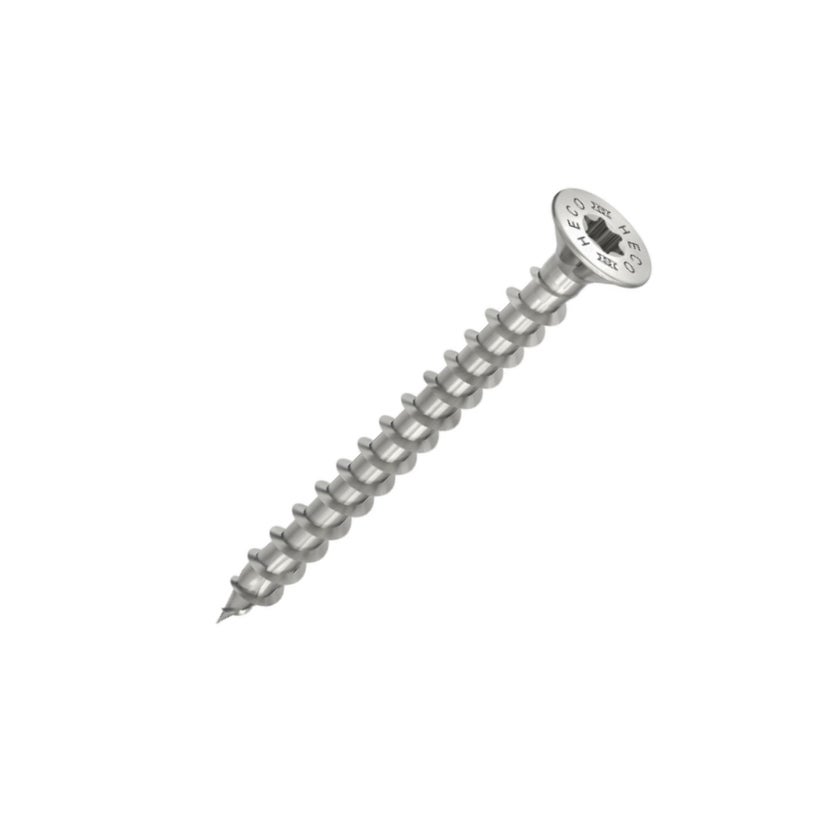

HECO-TOPIX-plus TFT, Rostfri A2
Beskrivning
HECO-TOPIX®-plus är avsedd för montage i trämaterial.
Träskruv, försänkt huvud. Tillverkad av rostfritt stål, A2.
Spårtyp: Tx
Spräcker inte virket pga den unika spetsdesignen med fräsrillor som fungerar förborrande.
• MagicClose: Variabel gängstigning för sammandragande effekt.
• PerfectPitch: Optimerad gängstigning för varje skruvlängd.
• Korrosivitetsklass C4
Ladda ner
Specifikationer
| Artikelnummer | Dimension | Diameter, mm | Längd, mm | Gänglängd (L1) | Gängtyp | Bitsspår | Huvuddiameter | Innehåller | Frp. typ | Ean | Enh./ytteremb. | Ytteremb. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 132103020031 | 3,0 x 20 | 3,0 | 20 | 16,00 | HG | T10 | 5,90 | 200 | Well | 4019787620130 | 24 | KRT | |
| 132103025031 | 3,0 x 25 | 3,0 | 25 | 21,00 | HG | T10 | 5,90 | 200 | Well | 4019787620147 | 24 | KRT | |
| 132103030031 | 3,0 x 30 | 3,0 | 30 | 26,00 | HG | T10 | 5,90 | 200 | Well | 4019787620154 | 24 | KRT | |
| 132103035031 | 3,0 x 35 | 3,0 | 35 | 31,00 | HG | T10 | 5,90 | 200 | Well | 4019787620161 | 24 | KRT | |
| 132103516031 | 3,5 x 16 | 3,5 | 16 | 11,00 | HG | HD20 | 7,30 | 200 | Well | 4019787620178 | 24 | KRT | |
| 132103520031 | 3,5 x 20 | 3,5 | 20 | 15,00 | HG | HD20 | 7,30 | 200 | Well | 4019787620185 | 24 | KRT | |
| 132103525031 | 3,5 x 25 | 3,5 | 25 | 20,00 | HG | HD20 | 7,30 | 200 | Well | 4019787620192 | 24 | KRT | |
| 132103530031 | 3,5 x 30 | 3,5 | 30 | 18,00 | DG | HD20 | 7,30 | 200 | Well | 4019787616379 | 24 | KRT | |
| 132103531031 | 3,5 x 30 | 3,5 | 30 | 25,00 | HG | HD20 | 7,30 | 200 | Well | 4019787620208 | 24 | KRT | |
| 132103536031 | 3,5 x 35 | 3,5 | 35 | 30,00 | HG | HD20 | 7,30 | 200 | Well | 4019787620215 | 20 | KRT | |
| 132103535031 | 3,5 x 35 | 3,5 | 35 | 21,00 | DG | HD20 | 7,30 | 200 | Well | 4019787616423 | 20 | KRT | |
| 132103540031 | 3,5 x 40 | 3,5 | 40 | 24,00 | DG | HD20 | 7,30 | 200 | Well | 4019787616478 | 20 | KRT | |
| 132103541031 | 3,5 x 40 | 3,5 | 40 | 35,00 | HG | HD20 | 7,30 | 200 | Well | 4019787620222 | 20 | KRT | |
| 132103545031 | 3,5 x 45 | 3,5 | 45 | 27,00 | DG | HD20 | 7,30 | 200 | Well | 4019787616508 | 20 | KRT | |
| 132103550031 | 3,5 x 50 | 3,5 | 50 | 30,00 | DG | HD20 | 7,30 | 200 | Well | 4019787616539 | 20 | KRT | |
| 132104020031 | 4,0 x 20 | 4,0 | 20 | 15,00 | HG | HD20 | 7,90 | 200 | Well | 4019787620239 | 24 | KRT | |
| 132104025031 | 4,0 x 25 | 4,0 | 25 | 15,00 | DG | HD20 | 7,90 | 200 | Well | 4019787616621 | 24 | KRT | |
| 132104026031 | 4,0 x 25 | 4,0 | 25 | 20,00 | HG | HD20 | 7,90 | 200 | Well | 4019787620246 | 24 | KRT | |
| 132104031031 | 4,0 x 30 | 4,0 | 30 | 25,00 | HG | HD20 | 7,90 | 200 | Well | 4019787620253 | 24 | KRT | |
| 132104030031 | 4,0 x 30 | 4,0 | 30 | 18,00 | DG | HD20 | 7,90 | 200 | Well | 4019787616676 | 24 | KRT | |
| 132104036031 | 4,0 x 35 | 4,0 | 35 | 30,00 | HG | HD20 | 7,90 | 200 | Well | 4019787620260 | 20 | KRT | |
| 132104035031 | 4,0 x 35 | 4,0 | 35 | 21,00 | DG | HD20 | 7,90 | 200 | Well | 4019787616720 | 20 | KRT | |
| 132104040031 | 4,0 x 40 | 4,0 | 40 | 24,00 | DG | HD20 | 7,90 | 200 | Well | 4019787616775 | 20 | KRT | |
| 132104041031 | 4,0 x 40 | 4,0 | 40 | 35,00 | HG | HD20 | 7,90 | 200 | Well | 4019787620277 | 20 | KRT | |
| 132104045031 | 4,0 x 45 | 4,0 | 45 | 27,00 | DG | HD20 | 7,90 | 200 | Well | 4019787616812 | 20 | KRT | |
| 132104046031 | 4,0 x 45 | 4,0 | 45 | 40,00 | HG | HD20 | 7,90 | 200 | Well | 4019787620284 | 20 | KRT | |
| 132104050031 | 4,0 x 50 | 4,0 | 50 | 30,00 | DG | HD20 | 7,90 | 200 | Well | 4019787616850 | 20 | KRT | |
| 132104051031 | 4,0 x 50 | 4,0 | 50 | 45,00 | HG | HD20 | 7,90 | 200 | Well | 4019787620291 | 20 | KRT | |
| 132104060031 | 4,0 x 60 | 4,0 | 60 | 36,00 | DG | HD20 | 7,90 | 200 | Well | 4019787616898 | 10 | KRT | |
| 132104070031 | 4,0 x 70 | 4,0 | 70 | 42,00 | DG | HD20 | 7,90 | 200 | Well | 4019787616904 | 10 | KRT | |
| 132104525031 | 4,5 x 25 | 4,5 | 25 | 20,00 | HG | HD20 | 8,90 | 200 | Well | 4019787620307 | 24 | KRT | |
| 132104531031 | 4,5 x 30 | 4,5 | 30 | 25,00 | HG | HD20 | 8,90 | 200 | Well | 4019787620314 | 20 | KRT | |
| 132104530031 | 4,5 x 30 | 4,5 | 30 | 18,00 | DG | HD20 | 8,90 | 200 | Well | 4019787616942 | 20 | KRT | |
| 132104536031 | 4,5 x 35 | 4,5 | 35 | 30,00 | HG | HD20 | 8,90 | 200 | Well | 4019787620321 | 20 | KRT | |
| 132104535031 | 4,5 x 35 | 4,5 | 35 | 21,00 | DG | HD20 | 8,90 | 200 | Well | 4019787616966 | 20 | KRT | |
| 132104541031 | 4,5 x 40 | 4,5 | 40 | 35,00 | HG | HD20 | 8,90 | 200 | Well | 4019787620338 | 20 | KRT | |
| 132104540031 | 4,5 x 40 | 4,5 | 40 | 24,00 | DG | HD20 | 8,90 | 200 | Well | 4019787616997 | 20 | KRT | |
| 132104546031 | 4,5 x 45 | 4,5 | 45 | 40,00 | HG | HD20 | 8,90 | 200 | Well | 4019787620345 | 20 | KRT | |
| 132104545031 | 4,5 x 45 | 4,5 | 45 | 27,00 | DG | HD20 | 8,90 | 200 | Well | 4019787617031 | 20 | KRT | |
| 132104550031 | 4,5 x 50 | 4,5 | 50 | 30,00 | DG | HD20 | 8,90 | 200 | Well | 4019787617093 | 10 | KRT | |
| 132104551031 | 4,5 x 50 | 4,5 | 50 | 45,00 | HG | HD20 | 8,90 | 200 | Well | 4019787620352 | 10 | KRT | |
| 132104560031 | 4,5 x 60 | 4,5 | 60 | 36,00 | DG | HD20 | 8,90 | 200 | Well | 4019787617147 | 10 | KRT | |
| 132104570031 | 4,5 x 70 | 4,5 | 70 | 42,00 | DG | HD20 | 8,90 | 200 | Well | 4019787617185 | 10 | KRT | |
| 132104580031 | 4,5 x 80 | 4,5 | 80 | 48,00 | DG | HD20 | 8,90 | 200 | Well | 4019787617222 | 10 | KRT | |
| 132105025031 | 5,0 x 25 | 5,0 | 25 | 19,00 | HG | HD20 | 9,60 | 200 | Well | 4019787620369 | 20 | KRT | |
| 132105030031 | 5,0 x 30 | 5,0 | 30 | 18,00 | DG | HD20 | 9,60 | 200 | Well | 4019787617314 | 20 | KRT | |
| 132105031031 | 5,0 x 30 | 5,0 | 30 | 24,00 | HG | HD20 | 9,60 | 200 | Well | 4019787620376 | 20 | KRT | |
| 132105036031 | 5,0 x 35 | 5,0 | 35 | 29,00 | HG | HD20 | 9,60 | 200 | Well | 4019787620383 | 20 | KRT | |
| 132105035031 | 5,0 x 35 | 5,0 | 35 | 21,00 | DG | HD20 | 9,60 | 200 | Well | 4019787617369 | 20 | KRT | |
| 132105041031 | 5,0 x 40 | 5,0 | 40 | 34,00 | HG | HD20 | 9,60 | 200 | Well | 4019787620390 | 20 | KRT | |
| 132105040031 | 5,0 x 40 | 5,0 | 40 | 24,00 | DG | HD20 | 9,60 | 200 | Well | 4019787617468 | 20 | KRT | |
| 132105046031 | 5,0 x 45 | 5,0 | 45 | 39,00 | HG | HD20 | 9,60 | 200 | Well | 4019787620406 | 10 | KRT | |
| 132105045031 | 5,0 x 45 | 5,0 | 45 | 27,00 | DG | HD20 | 9,60 | 200 | Well | 4019787617529 | 10 | KRT | |
| 132105050031 | 5,0 x 50 | 5,0 | 50 | 30,00 | DG | HD20 | 9,60 | 200 | Well | 4019787617628 | 10 | KRT | |
| 132105051031 | 5,0 x 50 | 5,0 | 50 | 44,00 | HG | HD20 | 9,60 | 200 | Well | 4019787620413 | 10 | KRT | |
| 132105061031 | 5,0 x 60 | 5,0 | 60 | 54,00 | HG | HD20 | 9,60 | 200 | Well | 4019787620420 | 10 | KRT | |
| 132105060031 | 5,0 x 60 | 5,0 | 60 | 36,00 | DG | HD20 | 9,60 | 200 | Well | 4019787617758 | 10 | KRT | |
| 132105071031 | 5,0 x 70 | 5,0 | 70 | 64,00 | HG | HD20 | 9,60 | 200 | Well | 4019787620437 | 10 | KRT | |
| 132105070031 | 5,0 x 70 | 5,0 | 70 | 42,00 | DG | HD20 | 9,60 | 200 | Well | 4019787617864 | 10 | KRT | |
| 132105081031 | 5,0 x 80 | 5,0 | 80 | 74,00 | HG | HD20 | 9,60 | 200 | Well | 4019787620444 | 10 | KRT | |
| 132105080031 | 5,0 x 80 | 5,0 | 80 | 48,00 | DG | HD20 | 9,60 | 200 | Well | 4019787617963 | 10 | KRT | |
| 132105090031 | 5,0 x 90 | 5,0 | 90 | 54,00 | DG | HD20 | 9,60 | 200 | Well | 4019787617970 | 10 | KRT | |
| 132105100031 | 5,0 x 100 | 5,0 | 100 | 60,00 | DG | HD20 | 9,60 | 100 | Well | 4019787617987 | 10 | KRT | |
| 132106040031 | 6,0 x 40 | 6,0 | 40 | 24,00 | DG | HD30 | 11,70 | 200 | Well | 4019787618014 | 10 | KRT | |
| 132106050031 | 6,0 x 50 | 6,0 | 50 | 30,00 | DG | HD30 | 11,70 | 200 | Well | 4019787618045 | 10 | KRT | |
| 132106060031 | 6,0 x 60 | 6,0 | 60 | 36,00 | DG | HD30 | 11,70 | 200 | Well | 4019787618083 | 10 | KRT | |
| 132106061031 | 6,0 x 60 | 6,0 | 60 | 53,00 | HG | HD30 | 11,70 | 200 | Well | 4019787620451 | 10 | KRT | |
| 132106070031 | 6,0 x 70 | 6,0 | 70 | 42,00 | DG | HD30 | 11,70 | 200 | Well | 4019787618137 | 5 | KRT | |
| 132106081031 | 6,0 x 80 | 6,0 | 80 | 73,00 | HG | HD30 | 11,70 | 100 | Well | 4019787620468 | 10 | KRT | |
| 132106080031 | 6,0 x 80 | 6,0 | 80 | 48,00 | DG | HD30 | 11,70 | 100 | Well | 4019787618182 | 10 | KRT | |
| 132106090031 | 6,0 x 90 | 6,0 | 90 | 54,00 | DG | HD30 | 11,70 | 100 | Well | 4019787618229 | 10 | KRT | |
| 132106100031 | 6,0 x 100 | 6,0 | 100 | 60,00 | DG | HD30 | 11,70 | 100 | Well | 4019787618267 | 10 | KRT | |
| 132106120031 | 6,0 x 120 | 6,0 | 120 | 72,00 | DG | HD30 | 11,70 | 100 | Well | 4019787618335 | 10 | KRT | |
| 132106140031 | 6,0 x 140 | 6,0 | 140 | 72,00 | DG | HD30 | 11,70 | 100 | Well | 4019787618380 | 5 | KRT | |
| 132106160031 | 6,0 x 160 | 6,0 | 160 | 72,00 | DG | HD30 | 11,70 | 100 | Well | 4019787618403 | 4 | KRT | |
| 132106180031 | 6,0 x 180 | 6,0 | 180 | 72,00 | DG | HD30 | 11,70 | 100 | Well | 4019787618427 | 4 | KRT | |
| 132106200031 | 6,0 x 200 | 6,0 | 200 | 72,00 | DG | HD30 | 11,70 | 100 | Well | 4019787618434 | 4 | KRT | |
| 132108080031 | 8,0 x 80 | 8,0 | 80 | 60,00 | DG | HD40 | 14,80 | 100 | Well | 4019787618472 | 4 | KRT | |
| 132108100031 | 8,0 x 100 | 8,0 | 100 | 60,00 | DG | HD40 | 14,80 | 100 | Well | 4019787618519 | 4 | KRT | |
| 132108120031 | 8,0 x 120 | 8,0 | 120 | 72,00 | DG | HD40 | 14,80 | 100 | Well | 4019787618571 | 4 | KRT | |
| 132108140031 | 8,0 x 140 | 8,0 | 140 | 72,00 | DG | HD40 | 14,80 | 100 | Well | 4019787618625 | 4 | KRT | |
| 132108160031 | 8,0 x 160 | 8,0 | 160 | 100,00 | DG | HD40 | 14,80 | 100 | Well | 4019787618663 | 4 | KRT | |
| 132108180031 | 8,0 x 180 | 8,0 | 180 | 100,00 | DG | HD40 | 14,80 | 100 | Well | 4019787618700 | 2 | KRT | |
| 132108200031 | 8,0 x 200 | 8,0 | 200 | 100,00 | DG | HD40 | 14,80 | 100 | Well | 4019787618748 | 2 | KRT | |
| 132108220031 | 8,0 x 220 | 8,0 | 220 | 100,00 | DG | HD40 | 14,80 | 50 | Well | 4019787618793 | 4 | KRT | |
| 132108240031 | 8,0 x 240 | 8,0 | 240 | 100,00 | DG | HD40 | 14,80 | 50 | Well | 4019787618854 | 4 | KRT | |
| 132108260031 | 8,0 x 260 | 8,0 | 260 | 100,00 | DG | HD40 | 14,80 | 50 | Well | 4019787618892 | 4 | KRT | |
| 132108280031 | 8,0 x 280 | 8,0 | 280 | 100,00 | DG | HD40 | 14,80 | 50 | Well | 4019787618946 | 4 | KRT | |
| 132108300031 | 8,0 x 300 | 8,0 | 300 | 100,00 | DG | HD40 | 14,80 | 50 | Well | 4019787619004 | 4 | KRT | |
| 132108320031 | 8,0 x 320 | 8,0 | 320 | 100,00 | DG | HD40 | 14,80 | 50 | Well | 4019787619042 | 4 | KRT | |
| 132108340031 | 8,0 x 340 | 8,0 | 340 | 100,00 | DG | HD40 | 14,80 | 50 | Well | 4019787619059 | 4 | KRT | |
| 132108360031 | 8,0 x 360 | 8,0 | 360 | 100,00 | DG | HD40 | 14,80 | 50 | Well | 4019787619080 | 2 | KRT | |
| 132108380031 | 8,0 x 380 | 8,0 | 380 | 100,00 | DG | HD40 | 14,80 | 50 | Well | 4019787619097 | 2 | KRT | |
| 132108400031 | 8,0 x 400 | 8,0 | 400 | 100,00 | DG | HD40 | 14,80 | 50 | Well | 4019787619103 | 2 | KRT |
