HECO-TOPIX-plus TK, Förzinkad
Beskrivning

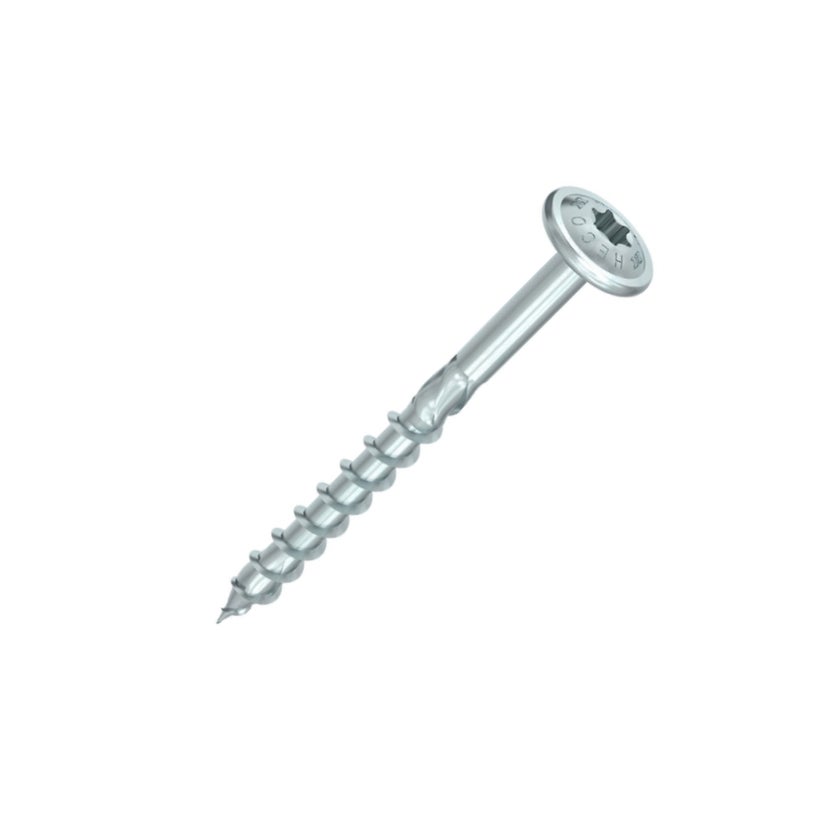

HECO-TOPIX®-plus TK är avsedd för montage i trämaterial. Skruven ger en högre lastöverföring på grund av den ökade klämytan av huvudet.
Träskruv, flänshuvud. Tillverkad av härdat stål, elförzinkad.
Spårtyp: Tx
Spräcker inte virket pga den unika spetsdesignen med fräsrillor som fungerar förborrande.
• PerfectPitch: Optimerad gängstigning för varje skruvlängd.
• Korrosivitetsklass C2
Ladda ner
Specifikationer
| Artikelnummer | Dimension | Diameter, mm | Längd, mm | Gänglängd (L1) | Gängtyp | Bitsspår | Huvuddiameter | Innehåller | Frp. typ | Ean | Enh./ytteremb. | Ytteremb. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 120306040571 | 6,0 x 40 | 6,0 | 40 | 36,00 | HG | T30 | 14,00 | 200 | Well | 4019787610131 | 10 | KRT | |
| 120306050571 | 6,0 x 50 | 6,0 | 50 | 46,00 | HG | T30 | 14,00 | 200 | Well | 4019787610391 | 10 | KRT | |
| 120306060571 | 6,0 x 60 | 6,0 | 60 | 56,00 | HG | T30 | 14,00 | 100 | Well | 4019787610636 | 10 | KRT | |
| 120306070571 | 6,0 x 70 | 6,0 | 70 | 66,00 | HG | T30 | 14,00 | 100 | Well | 4019787610803 | 10 | KRT | |
| 120306080571 | 6,0 x 80 | 6,0 | 80 | 76,00 | HG | T30 | 14,00 | 100 | Well | 4019787610940 | 10 | KRT | |
| 120306100571 | 6,0 x 100 | 6,0 | 100 | 60,00 | DG | T30 | 14,00 | 100 | Well | 4019787611176 | 10 | KRT | |
| 120306120571 | 6,0 x 120 | 6,0 | 120 | 72,00 | DG | T30 | 14,00 | 100 | Well | 4019787611374 | 10 | KRT | |
| 120306140571 | 6,0 x 140 | 6,0 | 140 | 72,00 | DG | T25 | 14,00 | 100 | Well | 4019787611510 | 8 | KRT | |
| 120306160571 | 6,0 x 160 | 6,0 | 160 | 72,00 | DG | T30 | 14,00 | 100 | Well | 4019787611671 | 4 | KRT | |
| 120306180571 | 6,0 x 180 | 6,0 | 180 | 72,00 | DG | T30 | 14,00 | 100 | Well | 4019787611763 | 4 | KRT | |
| 120306200571 | 6,0 x 200 | 6,0 | 200 | 72,00 | DG | T30 | 14,00 | 100 | Well | 4019787611855 | 4 | KRT | |
| 120306220571 | 6,0 x 220 | 6,0 | 220 | 72,00 | DG | T30 | 14,00 | 100 | Well | 4019787611923 | 4 | KRT | |
| 120306240571 | 6,0 x 240 | 6,0 | 240 | 72,00 | DG | T30 | 14,00 | 100 | Well | 4019787611992 | 4 | KRT | |
| 120306260571 | 6,0 x 260 | 6,0 | 260 | 72,00 | DG | T30 | 14,00 | 100 | Well | 4019787612067 | 4 | KRT | |
| 120306280571 | 6,0 x 280 | 6,0 | 280 | 72,00 | DG | T30 | 14,00 | 100 | Well | 4019787612135 | 4 | KRT | |
| 120306300571 | 6,0 x 300 | 6,0 | 300 | 72,00 | DG | T30 | 14,00 | 100 | Well | 4019787612203 | 2 | KRT | |
| 120308080571 | 8,0 x 80 | 8,0 | 80 | 74,00 | HG | T40 | 18,00 | 50 | Well | 4019787612456 | 4 | KRT | |
| 120308100571 | 8,0 x 100 | 8,0 | 100 | 94,00 | HG | T40 | 18,00 | 50 | Well | 4019787612593 | 4 | KRT | |
| 120308121571 | 8,0 x 120 | 8,0 | 120 | 72,00 | DG | T40 | 18,00 | 50 | Well | 4019787612722 | 4 | KRT | |
| 120308120571 | 8,0 x 120 | 8,0 | 120 | 114,00 | HG | T40 | 18,00 | 50 | Well | 4019787612708 | 4 | KRT | |
| 120308140571 | 8,0 x 140 | 8,0 | 140 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787612807 | 4 | KRT | |
| 120308160571 | 8,0 x 160 | 8,0 | 160 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787612944 | 4 | KRT | |
| 120308180571 | 8,0 x 180 | 8,0 | 180 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787613064 | 4 | KRT | |
| 120308200571 | 8,0 x 200 | 8,0 | 200 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787613194 | 4 | KRT | |
| 120308220571 | 8,0 x 220 | 8,0 | 220 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787613309 | 4 | KRT | |
| 120308240571 | 8,0 x 240 | 8,0 | 240 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787613415 | 4 | KRT | |
| 120308260571 | 8,0 x 260 | 8,0 | 260 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787613538 | 4 | KRT | |
| 120308280571 | 8,0 x 280 | 8,0 | 280 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787613675 | 4 | KRT | |
| 120308300571 | 8,0 x 300 | 8,0 | 300 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787613798 | 4 | KRT | |
| 120308320571 | 8,0 x 320 | 8,0 | 320 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787613910 | 4 | KRT | |
| 120308340571 | 8,0 x 340 | 8,0 | 340 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787614030 | 2 | KRT | |
| 120308360571 | 8,0 x 360 | 8,0 | 360 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787614139 | 2 | KRT | |
| 120308380571 | 8,0 x 380 | 8,0 | 380 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787614238 | 2 | KRT | |
| 120308400571 | 8,0 x 400 | 8,0 | 400 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787614320 | 2 | KRT | |
| 120308420571 | 8,0 x 420 | 8,0 | 420 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787614382 | 2 | KRT | |
| 120308460571 | 8,0 x 460 | 8,0 | 460 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787614436 | 2 | KRT | |
| 120308500571 | 8,0 x 500 | 8,0 | 500 | 100,00 | DG | T40 | 18,00 | 50 | Well | 4019787614474 | 2 | KRT | |
| 120310080571 | 10,0 x 80 | 10,0 | 80 | 73,00 | HG | T40 | 22,50 | 50 | Well | 4019787614757 | 4 | KRT | |
| 120310100571 | 10,0 x 100 | 10,0 | 100 | 93,00 | HG | T40 | 22,50 | 50 | Well | 4019787614832 | 4 | KRT | |
| 120310120571 | 10,0 x 120 | 10,0 | 120 | 100,00 | HG | T40 | 22,50 | 50 | Well | 4019787614924 | 4 | KRT | |
| 120310140571 | 10,0 x 140 | 10,0 | 140 | 84,00 | DG | T40 | 22,50 | 50 | Well | 4019787615013 | 4 | KRT | |
| 120310160571 | 10,0 x 160 | 10,0 | 160 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615129 | 4 | KRT | |
| 120310180571 | 10,0 x 180 | 10,0 | 180 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615181 | 4 | KRT | |
| 120310200571 | 10,0 x 200 | 10,0 | 200 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615273 | 4 | KRT | |
| 120310220571 | 10,0 x 220 | 10,0 | 220 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615358 | 4 | KRT | |
| 120310240571 | 10,0 x 240 | 10,0 | 240 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615433 | 2 | KRT | |
| 120310260571 | 10,0 x 260 | 10,0 | 260 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615525 | 2 | KRT | |
| 120310280571 | 10,0 x 280 | 10,0 | 280 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615624 | 2 | KRT | |
| 120310300571 | 10,0 x 300 | 10,0 | 300 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615723 | 2 | KRT | |
| 120310320571 | 10,0 x 320 | 10,0 | 320 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615808 | 2 | KRT | |
| 120310340571 | 10,0 x 340 | 10,0 | 340 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615884 | 2 | KRT | |
| 120310360571 | 10,0 x 360 | 10,0 | 360 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615921 | 2 | KRT | |
| 120310380571 | 10,0 x 380 | 10,0 | 380 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787615983 | 2 | KRT | |
| 120310400571 | 10,0 x 400 | 10,0 | 400 | 100,00 | DG | T40 | 22,50 | 50 | Well | 4019787616034 | 2 | KRT |
