Multi-Monti-plus sexkant, Förzinkad
Beskrivning

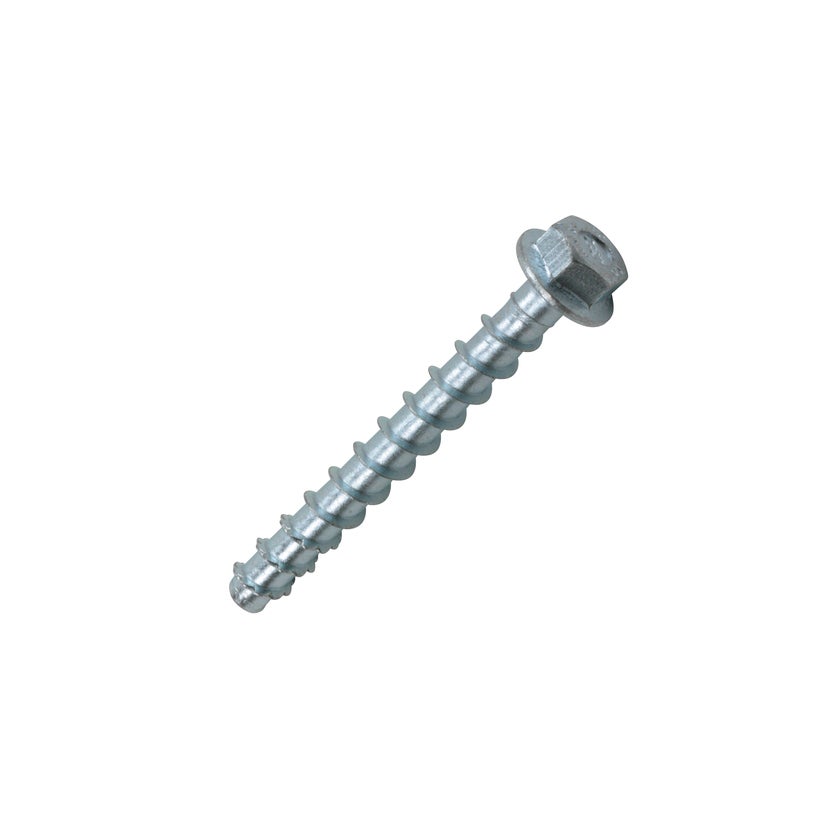

Multi-Monti betongskruv används för montage i betong, direkt i förborrat hål utan plugg.
Tillverkad av härdat stål, elförzinkad.
Spårtyp: 6-kantshuvud med fläns
Ladda ner
Specifikationer
| Artikelnummer | Dimension | Diameter, mm | Längd, mm | Nyckelvidd | Borrdiameter | Min förankringsdjup | Minsta borrdjup | Innehåller | Frp. typ | Ean | Enh./ytteremb. | Ytteremb. | CE | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 917106040571 | 6,0 x 40 | 6,0 | 40 | 8 | 5,00 | 35 | 40 | 100 | Varianta | 4019787483810 | 10 | KRT | Ja | |
| 917106050571 | 6,0 x 50 | 6,0 | 50 | 8 | 5,00 | 35 | 40 | 100 | Varianta | 4019787483834 | 10 | KRT | Ja | |
| 917106060571 | 6,0 x 60 | 6,0 | 60 | 8 | 5,00 | 35 | 40 | 100 | Varianta | 4019787483858 | 10 | KRT | Ja | |
| 917106070571 | 6,0 x 70 | 6,0 | 70 | 8 | 5,00 | 35 | 40 | 100 | Varianta | 4019787483872 | 10 | KRT | Ja | |
| 917106080571 | 6,0 x 80 | 6,0 | 80 | 8 | 5,00 | 35 | 40 | 50 | Varianta | 4019787498166 | 10 | KRT | Ja | |
| 917107035571 | 7,5 x 35 | 7,5 | 35 | 10 | 6,00 | 34 | 40 | 100 | Varianta | 4019787498463 | 10 | KRT | Ja | |
| 917107040571 | 7,5 x 40 | 7,5 | 40 | 10 | 6,00 | 35 | 40 | 100 | Varianta | 4019787483896 | 10 | KRT | Ja | |
| 917107050571 | 7,5 x 50 | 7,5 | 50 | 10 | 6,00 | 35 | 40 | 50 | Varianta | 4019787483919 | 10 | KRT | Ja | |
| 917107060571 | 7,5 x 60 | 7,5 | 60 | 10 | 6,00 | 35 | 40 | 50 | Varianta | 4019787483933 | 10 | KRT | Ja | |
| 917107080571 | 7,5 x 80 | 7,5 | 80 | 10 | 6,00 | 35 | 40 | 50 | Varianta | 4019787483971 | 10 | KRT | Ja | |
| 917107100571 | 7,5 x 100 | 7,5 | 100 | 10 | 6,00 | 35 | 40 | 50 | Varianta | 4019787498173 | 10 | KRT | Ja | |
| 917107120571 | 7,5 x 120 | 7,5 | 120 | 10 | 6,00 | 35 | 40 | 50 | Varianta | 4019787498197 | 8 | KRT | Ja | |
| 917107140571 | 7,5 x 140 | 7,5 | 140 | 10 | 6,00 | 35 | 40 | 50 | Varianta | 4019787498210 | 8 | KRT | Ja | |
| 917110060571 | 10 x 60 | 10 | 60 | 13 | 8,00 | 50 | 60 | 25 | Varianta | 4019787483995 | 10 | KRT | Ja | |
| 917110070571 | 10 x 70 | 10 | 70 | 13 | 8,00 | 50 | 60 | 25 | Varianta | 4019787484015 | 10 | KRT | Ja | |
| 917110080571 | 10 x 80 | 10 | 80 | 13 | 8,00 | 50 | 60 | 25 | Varianta | 4019787484039 | 10 | KRT | Ja | |
| 917110090571 | 10 x 90 | 10 | 90 | 13 | 8,00 | 50 | 60 | 25 | Varianta | 4019787484053 | 10 | KRT | Ja | |
| 917110100571 | 10 x 100 | 10 | 100 | 13 | 8,00 | 50 | 60 | 25 | Varianta | 4019787484534 | 10 | KRT | Ja | |
| 917110120571 | 10 x 120 | 10 | 120 | 13 | 8,00 | 50 | 60 | 25 | Varianta | 4019787484558 | 8 | KRT | Ja | |
| 917110140571 | 10 x 140 | 10 | 140 | 13 | 8,00 | 50 | 60 | 25 | Varianta | 4019787484572 | 4 | KRT | Ja | |
| 917110160571 | 10 x 160 | 10 | 160 | 13 | 8,00 | 50 | 60 | 25 | Varianta | 4019787484596 | 8 | KRT | Ja | |
| 917112060571 | 12 x 60 | 12 | 60 | 15 | 10,00 | 55 | 65 | 25 | Varianta | 4019787542777 | 10 | KRT | ||
| 917112080571 | 12 x 80 | 12 | 80 | 15 | 10,00 | 75 | 25 | Varianta | 4019787484077 | 4 | KRT | Ja | ||
| 917112090571 | 12 x 90 | 12 | 90 | 15 | 10,00 | 75 | 25 | Varianta | 4019787484091 | 4 | KRT | Ja | ||
| 917112100571 | 12 x 100 | 12 | 100 | 15 | 10,00 | 75 | 25 | Varianta | 4019787484114 | 4 | KRT | Ja | ||
| 917112120571 | 12 x 120 | 12 | 120 | 15 | 10,00 | 75 | 25 | Varianta | 4019787484138 | 4 | KRT | Ja | ||
| 917112140571 | 12 x 140 | 12 | 140 | 15 | 10,00 | 75 | 25 | Varianta | 4019787484152 | 4 | KRT | Ja | ||
| 917112160571 | 12 x 160 | 12 | 160 | 15 | 10,00 | 75 | 25 | Varianta | 4019787484619 | 4 | KRT | Ja | ||
| 917114110571 | 14 x 110 | 14 | 110 | 17 | 12,00 | 95 | 105 | 25 | Varianta | 4019787542715 | 4 | KRT | Ja | |
| 917114130571 | 14 x 130 | 14 | 130 | 17 | 12,00 | 0 | 25 | Varianta | 4019787542722 | 4 | KRT | Ja | ||
| 917116080571 | 16 x 80 | 16 | 80 | 24 | 14,00 | 70 | 80 | 25 | Varianta | 4019787542746 | 4 | KRT | ||
| 917116120571 | 16 x 120 | 16 | 120 | 21 | 14,00 | 100 | 10 | Varianta | 4019787498487 | 4 | KRT | |||
| 917116130571 | 16 x 130 | 16 | 130 | 21 | 14,00 | 100 | 10 | Varianta | 4019787484176 | 4 | KRT | |||
| 917116140571 | 16 x 140 | 16 | 140 | 21 | 14,00 | 100 | 10 | Varianta | 4019787484190 | 4 | KRT | |||
| 917116160571 | 16 x 160 | 16 | 160 | 21 | 14,00 | 100 | 10 | Varianta | 4019787484213 | 4 | KRT | |||
| 917120100571 | 20 x 100 | 20 | 100 | 24 | 18,00 | 90 | 10 | Varianta | 4019787542753 | 4 | KRT | |||
| 917120160571 | 20 x 160 | 20 | 160 | 24 | 18,00 | 140 | 6 | Varianta | 4019787484237 | 4 | KRT | |||
| 917120180571 | 20 x 180 | 20 | 180 | 24 | 18,00 | 140 | 6 | Varianta | 4019787484251 | 4 | KRT | |||
| 917120200571 | 20 x 200 | 20 | 200 | 24 | 18,00 | 140 | 6 | Varianta | 4019787484275 | 4 | KRT |
